Figure: Distribution of ice loss for the period 2003–2012

by
IPCC AR5 WGI, Technical Summary, p. 41

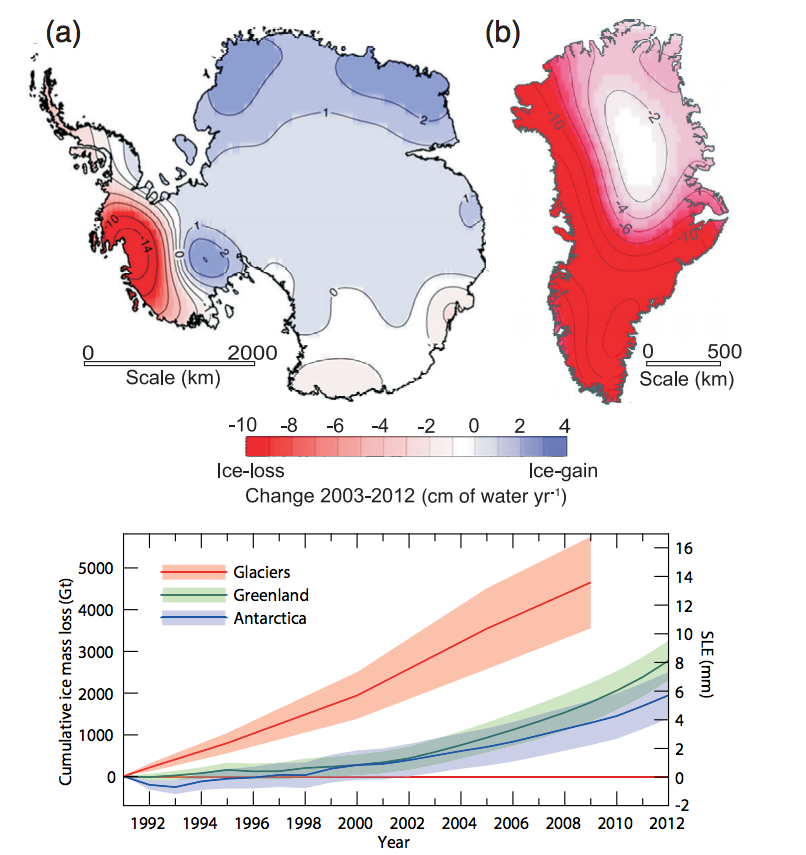

(Upper) Distribution of ice loss determined from Gravity Recovery and Climate Experiment (GRACE) time-variable gravity for (a) Antarctica and (b) Greenland, shown in centimeters of water per year (cm of water yr–1) for the period 2003–2012. (Lower) The assessment of the total loss of ice from glaciers and ice sheets in terms of mass (Gt) and sea level equivalent (mm). The contribution from glaciers excludes those on the periphery of the ice sheets.
